LDO High Speed Stepper Motor for your Voron, VzBoT, Ender 5, Prusa i3 or similar!

The LDO NEMA17 Motor LDO-42STH48-2504AC is the best choice for projects such as Voron, VzBot, Annex Engineering, Rat Rig, and Mercury One (Creality printer Mod) 3D Printers to name a few. If you want to go fast, this is what you are looking for.
This motor is also known as LDO-42STH47-2504AC. LDO did a slight name change but these are the same motors.

This is a high quality, high speed and high torque stepper motor. Ideal for use as XY motors on a CoreXY printer.

Technical Data:

Model: LDO-42STH48-2504AC
NEMA 17
1.8° Step Angle
200 Steps Per Revolution
2.5 Amp
5.5Kg-cm Holding Torque
48mm Body
24mm Output Shaft (5mm diameter)
cable included

Review:

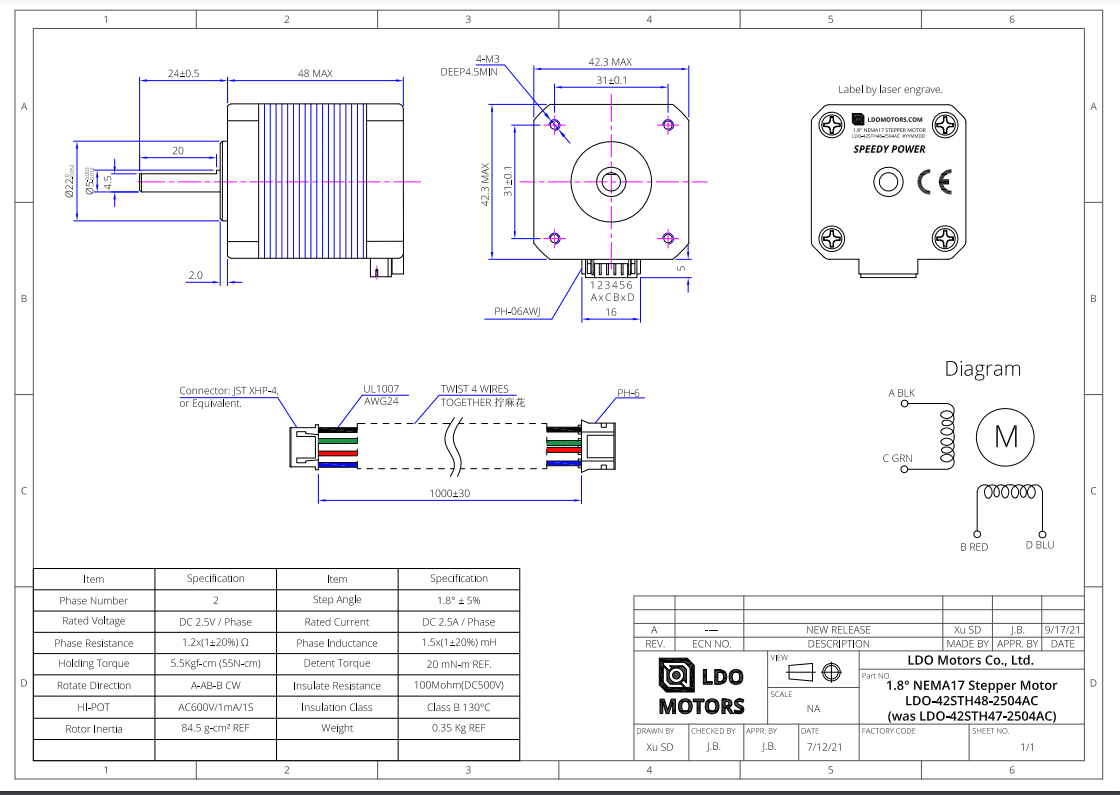

Datasheet:

Weight	0.5 kg
Dimensions	8 × 8 × 6 cm
Brand	LDO Motors
