LDO Smart Orbiter v3.0

$239.90

This Smart Orbiter v3.0 manufactured by LDO Motors is an innovative all in one dual drive extruder / hot end tool head assembly. The main mission of this design is the integration of the well proven Orbiter v2 concept into a lightweight all in one smart extruder.

The Orbiter v3.0 was designed by Dr. Lorincz Robert, for more information visit https://www.orbiterprojects.com/so3/.

In stock

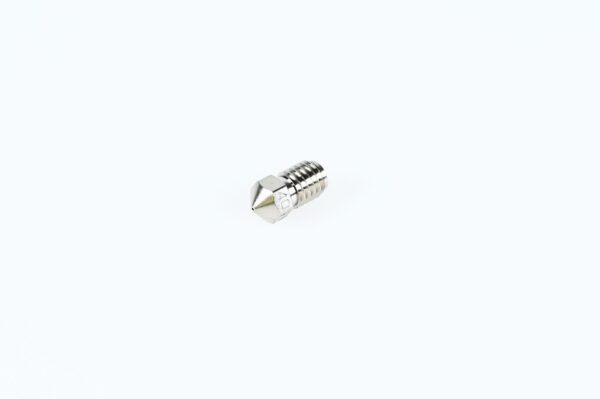

Pure plated copper heat-block with 24v/72W ceramic heater and 0.4mm Bondtech CHT nozzle for best possible weight to flow ratio
Heat-break performance optimized with finite element analysis for extreme temperature gradient to ensure clogless free printing experience
Unique tensioning mechanism with elastic predefined tension levels
Frameless recessed fan to reduce the extruder weight and outside dimension
Large RNC coated dual drive gears with planetary gear reduction, similar to Orbiter v2.0
New precision main shaft design to reduce gear eccentricity
Full aluminum housing with Delrin plastic gears for low noise and long lifetime
The smart feature – integrated electronics
Easy removal of the secondary drive gear for easy cleaning and maintenance
Double filament exit guide system for best TPU printing performance
Overall weight is 175g
With motor

Weight	0.5 kg
Dimensions	15 × 15 × 10 cm
Brand	LDO Motors
